MINI OSCILLOSCOPE
Sales Support,
Phone: (86)0596-2161506,
Email: DF@e-sun.cn ┇ Please contact us for details
Model:
EM125

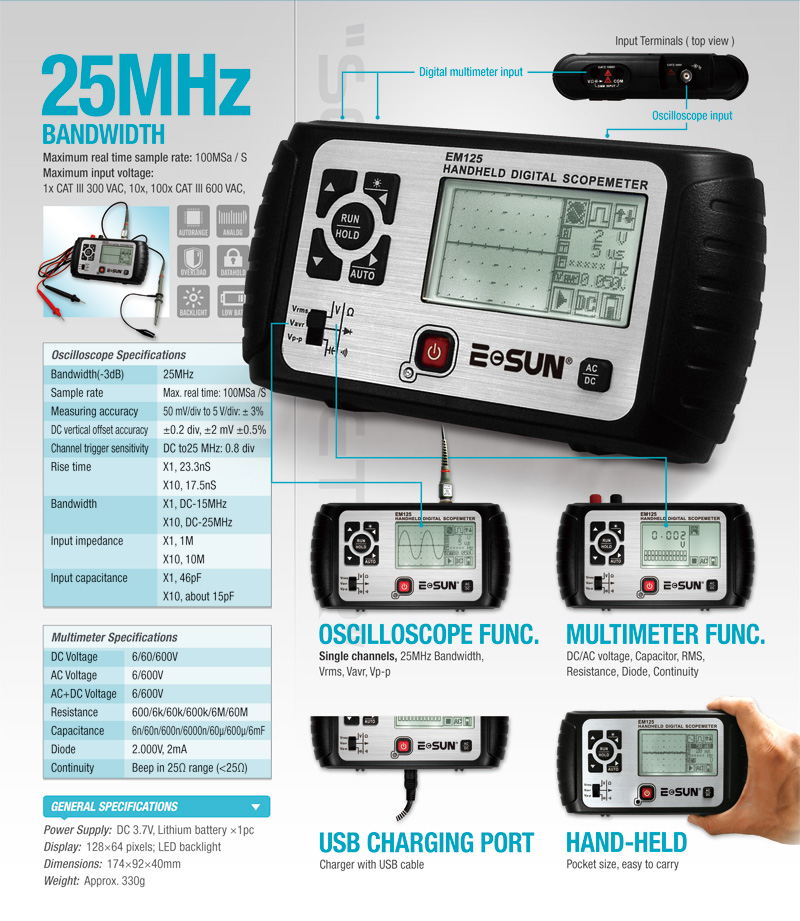

MINI OSCILLOSCOPE Features
MINI OSCILLOSCOPE HANDHELD DIGITAL OSCILLOSCOPE POCKET-SIZE
Specification of OSCILLOSCOPE:
- Bandwidth(-3dB): 25MHz
- Sample: Max sample:100MSa/S
- Channel: 1
- Couple: AC, DC
- Rising time: < 17.5 nS
- Input independence: 1MΩ,≤20pF
- Max input voltage: 1x CAT III 300 VAC 10x, 100x CAT III 600 VAC
- Vertical resolution: 8bit
- Vertical sensitive: 50mV/div-20V/div
- Horizontal resolution: 10nS/div
- Horizontal sensitive: 10nS/div -5S/div
- Depth-sampling: 0.1K/Channel
- Trigger mode: AUTO, Rising edge, falling edge
Fundmental specification:
- Screen size: 128(horizontal)×64(vertical);backlight:LED
- Battery: 3.7V Lithium battery 1200mAH
- charger: Input:100VAC-240VAC
- Output:5V±10%DC 1000mA
- size: 174*92*40mm
- wheight: 330g(host machine)
Specification of multimeter:
- Measure count: 6000
- Input: Max input voltage:600 Vrms CAT II, 300 Vrms CAT III
- On resistance: 25Ω(at the range of 600Ω), if less it beep
- Diode measure: >2V shows OL(overload) <0.25 beep
- Capacity measure: 6.000nF- 6mF 7range
- Resistance measure: 600.0Ω- 60.00MΩ 6range
- Voltage measure: 6V- 600V 3 range
Specifications
Voltage:
| DC Voltage | 6.000 V | | 0.5 ±8 |
| 60.00 V | | 0.5 ±8 |
| 600.0 V | | 0.5 ±8 |
| AC Voltage | 6.000 V – 600.0 V | 40 Hz – 400Hz | 1.0 ±10 |
| 400Hz – 2 kHz | 3.0 ±10 |
| AC+DC Voltage | 6.000 V – 600.0 V | 40 Hz – 400Hz | 1.0 ±10 |
| 400Hz – 2 kHz | 3.0 ±10 |
Resistance:
| 600.0Ω | 1.0 ±5 |
| 6.000 KΩ | 1.0 ±5 |
| 60.00 kΩ | 1.0 ±5 |
| 600.0 kΩ | 1.0 ±5 |
| 6.000 MΩ | 1.0 ±5 |
| 60.00 MΩ | 2.0 ±5 |
Capacitance:
| 6.000 nF | 3.0 ±8 |
| 60.00 nF | 3.0 ±8 |
| 600.0 nF | 3.0 ±8 |
| 6000 nF | 3.0 ±8 |
| 60.00 uF | 3.0 ±8 |
| 600.0 uF | 3.0 ±8 |
| 6.000 mF | 3.0 ±8 |
Accessories
