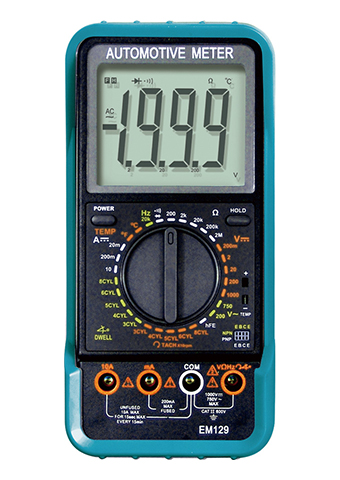

Model: EM129
[2007 catalog B] [Page 49]
·Data hold function
·Autorange function for the test
·Overload protection for all range
·Auto power off
CAT II
The instrument complies with CAT II 600.
CE
Tacho Test
DC Voltage:200m/2/20/200/1000V
AC Voltage:200/750V
DC Current:20m/200m/10A
Resistance:200/2k/20k/200k/2M/20MΩ
Frequency:20kHz
Temperature:-20?C ~ 750?C (-4°F to 1382°F)
Dwell:3-4-5-6-8CYL
Tacho:3-4-5-6-8CYL ( x 10rpm)
hFE:Vce≈3V, Ib≈10μA
Diode Check:3V / 1mA
Power:9V battery (6F22)
Dimensions(W×L×T):97×200×48 mm
Weight:495g (with battery)
525
|

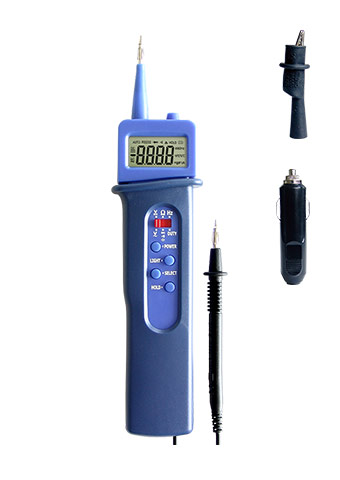

Model: EM3214
[2007 catalog B] [Page 49]
EM3214 is a great tool for checking your car battery voltage or alternator output. Also useful for finding a LIVE wire when installing your car stereo or car alarm. But the applications are not limited to the car because of course it works as an ordinary multimeter as well.
Digital LCD display, Max. reading 3999
Data-hold Function
Auto Power Off
Auto Range
Overload Protection
CAT II
The instrument complies with CAT II 600.
CE
with Spotlight
Voltage DC:400m/4V/40V/400V/600V
Voltage AC:4V/40V/400V/600V
Resistance:400/4k/40k/400k/4M/40MΩ
Frequency:9.999/99.99/999.9
9.999k/99.99k/999.9k/10MHz
Capacitance:4n/40n/400n/4μ/40μ/100μF
Duty Cycle:0.1% to 99%
Diode Check:1.5V/1mA
Power:1.5V × 2 (AA)
Dimensions(W×L×T):95×195×55 mm
Weight:620g (with battery)
325
|

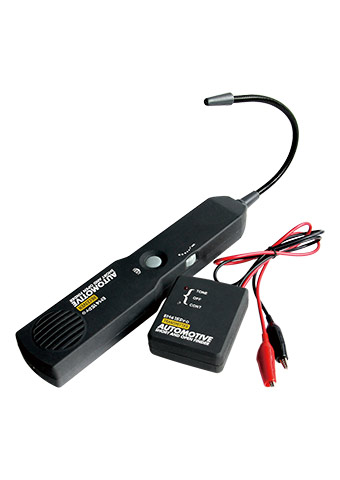

Model: EM415PRO
[2007 catalog B] [Page 50]
EM415pro is designed to identify and trace wires or
cables without damaging the insulation. You can also use
it in checking for short circuit and open circuit and so on.
There are a Sender and a Receiver included in the M415pro.
HOW TO USE THE PROBE
The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach wires in ongested or difficult areas. Depending on the circuit characteristic and sensitivity settings, the probe will pick up the signal from the wire in a range of positions. However, for the best possible range the Receiver’s probe tip (black cap) should be positioned perpendicular (at 90o) to the wire being traced and either above or below it.
CE
Flexible Probe
Checking for short circuit
Locating open circuit
Wire identification
Wire tracing
217
|

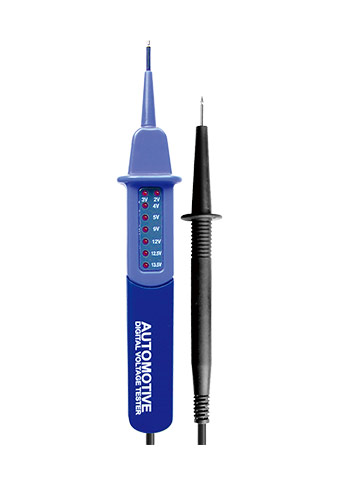

Model: GK9A
[2007 catalog B] [Page 51]
Max.Range 13.5V
CE
Voltage range
2.0V/3.0V/4.0V/5.0V
9.0V/12.0V/12.5V/13.5V
Indication:
LED lights up to the Voltage reading
Frequency range: 0 to 60Hz
204
|

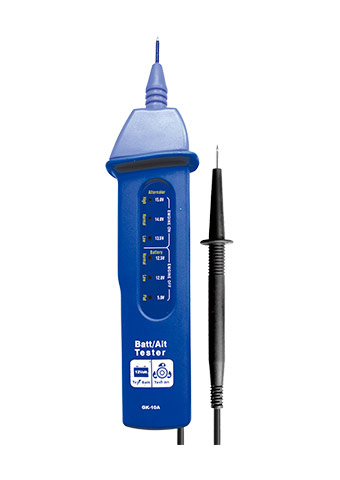

Model: GK10A
[2007 catalog B] [Page 51]
·AUTOMOTIVE VOLTAGE TESTER
·VOLTAGE MEASUREMENT
(LED indicators light up to confirm voltage status)
·Alternalor
High 15.0V
Normal 14.0V
Low 13.5V
Battery:
Normal 12.5V
Low 12.0V
Flat 5.0V
·LED lights up the Voltage reading
Max.Range 15.0V
Voltage measurement
(LED indicators light up to confirm voltage status)
Alternator
High 15.0V / Normal 14.0V / Low 13.5V
Battery
normal 12.5 / Low 12.0V / Flat 5.0V /
204
|

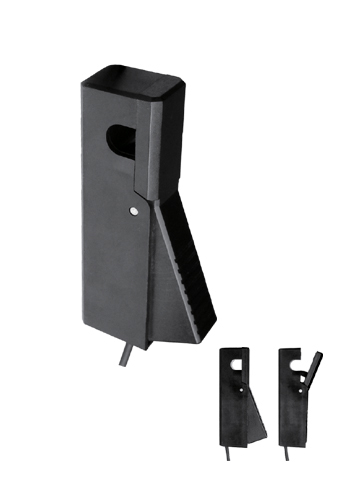

Model: EA100
[2007 catalog B] [Page 54]
Simple to use, just clamp the spark plug wire.
This unit is designed to be used with automotive meter or oscillograph. It can be used in the adjustment and diagnosis of automotive engine. It is an ideal tool when you want to know the accurate turning speed of the engine. Simple to use, just clamp the spark plug wire.
Used with automotive meter or oscillograph
CE
Power:1.5V(AA) Battery × 6
Dimensions(W×L×T):95×195×55 mm
Weight:620g (with battery)
187
|

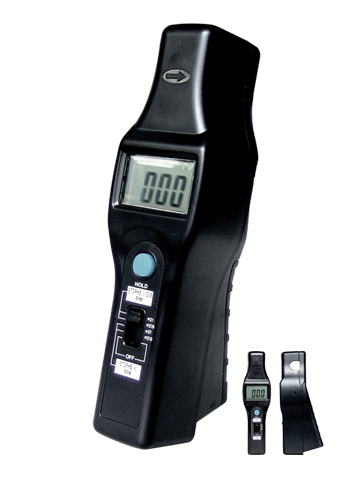

Model: EA101
[2007 catalog B] [Page 54]
·Conventional 4 cycle or
DIS/2 cycle ignition system capability
·Simple to use, just clamp over wire
·Work on 1,2,3,4,5,6,7 & 8 cylinder engines
·Data hold function
·Low and high RPM test ranges
·Used to verify and set idle speed
RPM
Accurate engine RPM measurements
CE
Ranges :600 -2000,
(RPM4):2000 -12000 (×10RPM )
Ranges :300 - 2000,
(RPM2/DIS):2000 - 7000 (×10RPM )
Resolution:×1:1RPM; ×10:10vRPM
Effect reading:>600 RPM for RPM4
>300 RPM for RPM2/DIS
Accuracy:±2.0%rdg+5dgts)
Power:9V battery (6F22)
Dimensions(W×L×T):48×175×70 mm
Weight:190g (with battery)
186
|

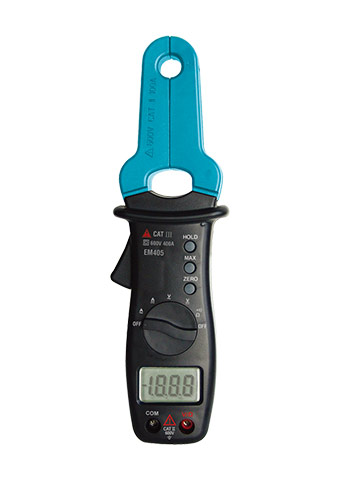

Model: EM405
·3 1/2 digits LCD, Max. reading 1999
·Data-hold function
·DCA & ACA measurement
·Low battery indication
·Overload protection
CAT III
The instrument complies with CAT III 600.
DCA & ACA
CE
Search for products
Search
Featured pruducts
EM400
EM450
EM431
EM204
EM203
Digital Clamp Meter more
+ Interest
EM400
EM580A
DT910B
DT831
EM30
51AEM400 DIGITAL CLAMP METER/Digital Clamp Meter
Picture of E-Sun EM400
Features
[2007 catalog B] [Page 35]
·3 1/2 digits LCD, Max. reading 1999
·Data-hold function
·DCA & ACA measurement
·Low battery indication
·Overload protection
·Audible continuity
CAT III
The instrument complies with CAT III 600.
DCA & ACA
Specifications
Voltage DC:400m/4/40/400/600V
Voltage AC:400m/4/40/400/600V
Current DC:40/100A
Current AC:40/100A
Resistance:400/4k/40k/400k/4M/40MΩ
Continuity:Yes
Diode Check:Yes
Power:1.5V(AAA)× 2
Dimensions(W×L×T):72×226×35 mm
Weight:220g (with battery)
124
|

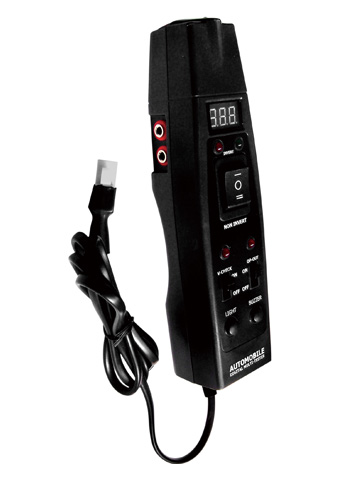

Model: EM288
[2007 catalog B] [Page 53]
The automotive multi tester, which tests the electrical system of an automobile completely. This multipurpose instrument:
·Tests battery voltage
·Checks the battery condition while starting the engine.
·Checks interior and exterior lamps
·Checks relays, power windows and electric motors.
·LED light source.
It also has a powerful light source, circuit breaker protected voltage source and a warning buzzer
·Power supply functions may be selected.
·Protects wires and components when testing shorted and overloaded circuits
·Finds open and disconnected parts
·There is magnet near the back side of the device, so you can attach the device on the vehicle for easy use.
Automotive Multi Tester
CE
Power:12V battery (23A)
Dimensions(W×L×T):53×195×45 mm
Weight:250g (only main body)
50
|

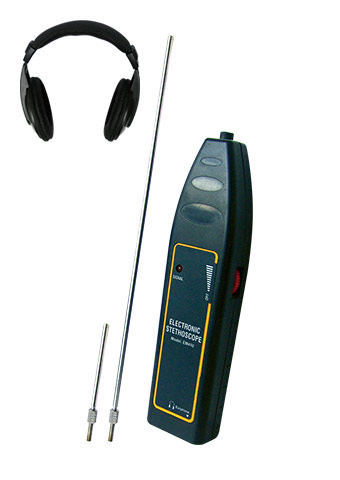

Model: EM410
[2007 catalog B] [Page 50]
Sound amplification with volume control
Headset combined with ear defenders to cut out background noise
2 Probe tip, lengths 60 and 290mm
Strong probe body, black ABS molding
9 Volt alkaline battery for about 30 hours continuous operation
Instrument case and battery included
CE
Power:9V battery (6F22)
Dimensions(W×L×T):50×206×32 mm
Weight:240g (with battery)
43
|

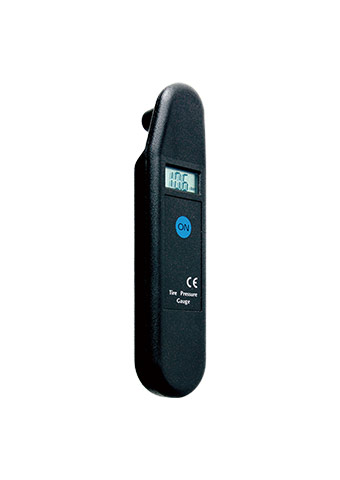

Model: EM6085
[2007 catalog B] [Page 54]
This unit is an ideal tool for tire pressure measurement. It has the advantages of light weight and compact structure. It is very easy to use.
You can use it to measure a vehicle‘s tire pressure for safe driving.
Range: 3.0～99.5PSI
Accuracy: ±1.5PSI
Resolution: 0.5PSI
Units: PSI, BAR, KPA, Kg/cm2
Auto Power Off: about 85 seconds later
Battery: 3V Lithium Battery CR2032
Working Temperature: 0～50℃
Storage Temperature: -10～55℃
Size: 143mmX35mmX29mm
Weight: about 45g(including battery)
19
|

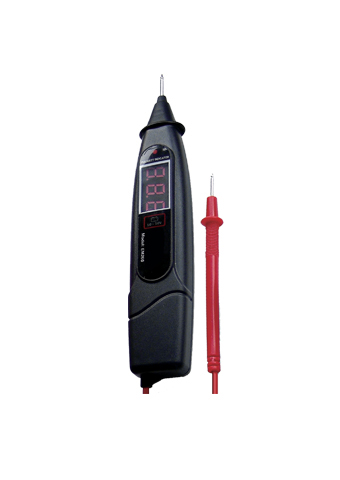

Model: EM286
This unit is designed to measure the voltage of all kinds of batteries which output DC voltage between 10V and 50V.
It operates easily and quickly. It is an ideal tool for vehicle serviceman and the drivers.
No power supply needed, small size. very easy to operate, light weight
Max.Range 50V
CE
Dimensions(W×L×T):187×33×21.5 mm
Weight:85g (with battery)
4
|

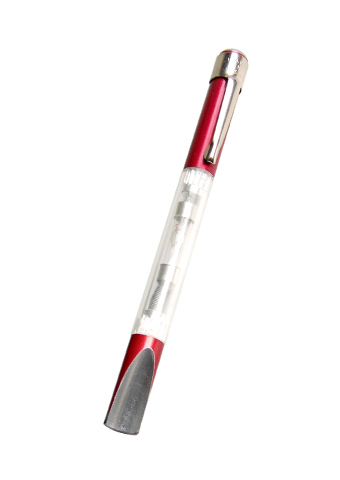

Model: GK500
[2007 catalog B] [Page 52]
Tool tests spark plugs, spark plug wires, and coils without puncturing the wire.
With the engine running, place the grooved end of the tool over the spark plug wire.
The bulb will flash to indicate spark.
|

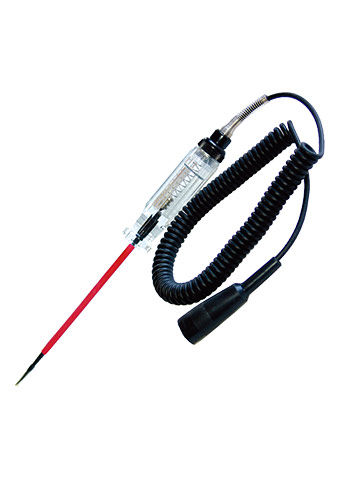

Model: GK516
·Coil cord design for easy use with 9-foot cable
·Easily checks 6 and 12V systems
·Tough Plastic handle lights up if circuit is good
·Leads remain flexible in low temperatures
|

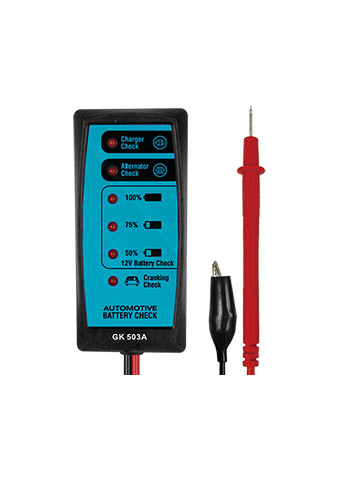

Model: GK503A
[2007 catalog B] [Page 52]
·Indicates battery charge condition.
·Checks charging circuit of 12 volt batteries including sealed acid and maintenance free types.
·Compact and easy to use.
CE
Dimensions(W×L×T):45×100×16 mm
Weight:67g (with battery)
0
|

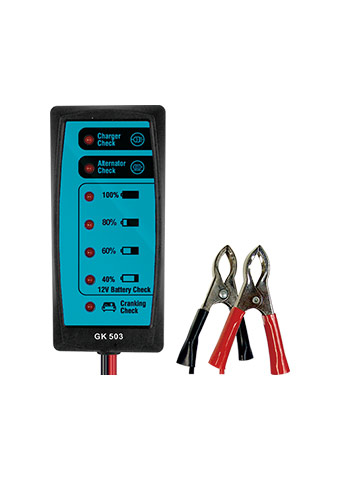

Model: GK503
[2007 catalog B] [Page 52]
·Indicates battery charge condition
·Checks charging circuit of 12 volt batteries including sealed acid and maintenance free types.
·Compact and easy to use.
CE
Dimensions(W×L×T):45×100×16 mm
Weight:67g (with battery)
0
|

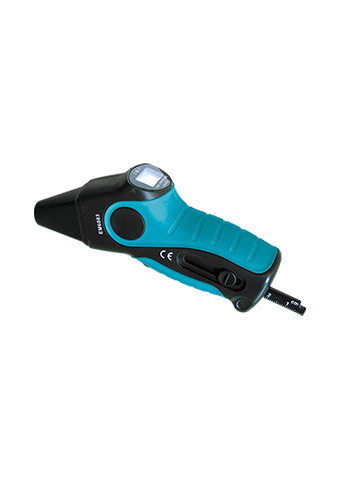

Model: EM6083
[2007 catalog B] [Page 54]
·3 ~ 99.5 PSI
·Dual function
·Digital gauge accurate to +/- 1.5 PSI
·Display shows PSI, BAR, KPA and kg/cm2
·Auto power off, Backlight display
·Ergonomic design for comfortable hand fit
·Ruler for measuring tire veins depth
Backlight & Ruler
·Auto power off
·Backlight display
·Ergonomic design for comfortable hand fit
Power:1.5V (LR44)×2
Dimensions(W×L×T):50×135×32 mm
Weight:60g (with battery)
0
|
Model: GK517
·Quickly and safely tests high and low voltages on all vehicle
·Includes computerized engine
·Checks high and low voltages (power and ground) on 6, 12 and 24V system
·High impedance to protect sensitive electronic sensors, microprocessors, electronic ignition components and air bags
·LED indicates red for power (high) and green for ground (low)
·Connects the red lead to a power sources and the black lead to a ground source
|

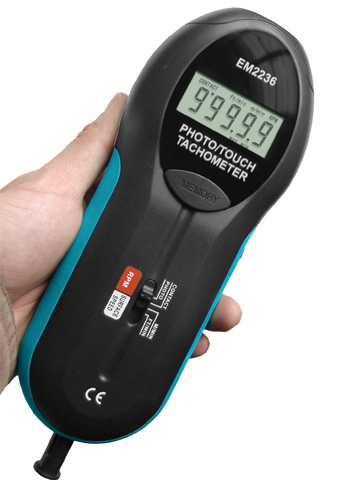

Model: EM2236
This instrument can be used to measure rotation speed (RPM) and surface speed accurately. To perform rotation speed measurement, you can use Photo or Contact mode.
The instrument features wide measurement range, high resolution, and quick measurement. In addition, the memory of the maximum, minimum and last readings is provided. It can be used widely and is a very useful measurement tool
SPECIFICATION
Rotation speed: Photo: 6~99999RPM, Contact: 1~19999RPM
Surface speed: 0.1 ~ 1999.9m/min, 0.3 ~ 6560ft/min
Accuracy: ±(0.05% of reading+1 digit)
Range Selection: Automatic
Dimensions: 217×84×43 mm
Weight: Approx. 265g (Without battery)
Power Supply: a. Battery: 1.5V, AA or equivalent, 4 pieces
b. Using AC Adapter: output voltage of DC6V
0
|
Model: EM130USB
USB LINK TO PC
Connect the USB data cable supplied with the meter to the terminal on the top of the meter, connect the other end of this cable to the USB port of the computer. The computer will prompt that a new hardware has been found and the USB driver will be installed automatically.
FEATURES
·3 3/4-digit backlight LCD, with a max. reading of 3999
·Manual and autoranging mode
·Dwell Angle, Tacho measurement
·Relative mode
·Automatic power off
·Data-hold mode
·Polarity indication
·Overrange indication
·Low battery indication
·Link to PC
·With the USB2.0 interface, Data Cable and CD
SPECIFICATION
Dwell Angle: 2-3-4-5-6-8CYL (180°/120°/90°/72°/60°/45°
Tacho: 250~40kRMP, Highest Resolution: 1RMP
Voltage DC: 400m/4/40/250V
Voltage AC: 4/40/250V
Current DC: 400μ/4000μ/40m/400m/4/10A
Current AC: 400μ/4000μ/40m/400m/4/10A
Resistance: 400/4k/40k/400k/4M/40MΩ
Frequency: 5/50/500/5k/50k/200kHz
Capacitance: 50n/500n/5μ/50μ/100μ
Duty Cycle: 5%~95%
Temperature: -20~1000?C / -4~1832?F
Diode Check: approx. 1.5V
Continuity: Less than about 50Ω, more than about 120Ω
Power Supply: 9V(6F22) battery×1pc
Dimensions: 165×83×47 mm
Weight: Approx.300g (Without battery)
0
|
