CATII / CE

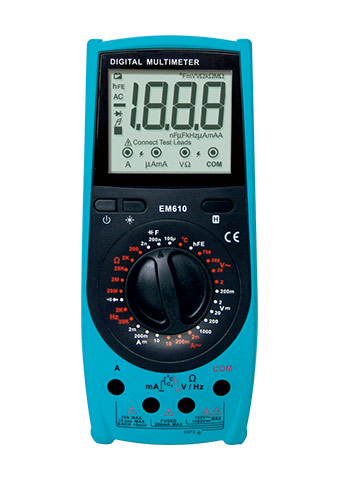

3.5” LCD Highlights to the user which sockets to plug test leads into.
·Data hold function
·Auto power off
·Special functions
·Voltage measurement around 10M?
·Diode, continuity buzzer, transistor,
·full icon display, Max display 1999
·Low battery display
·Input impedance for DC
·Backlight
DC Voltage:200mV/2/20/200/1000V
AC Voltage:2/20/200/1000V
DC Current:2/20/200mA/20A
AC Current:2mA/200mA/20A
Resistance:200Ω/2kΩ/20kΩ
2MΩ/20MΩ
Capacitance:2nF/200nF/100μF
Temp:0oC~750oC
FREQ:2/20kHz
Power:9V battery (6F22)
Dimensions (W×L×T):88×198×48 mm
Weight:355g (with battery)
Test Lead; Temperature probe; Battery; Users Manual
