DIGITAL MULTIMETER

Sales Support, Phone: (86)0596-2161506, Email: DF@e-sun.cn ┇ Please contact us for details

Model:

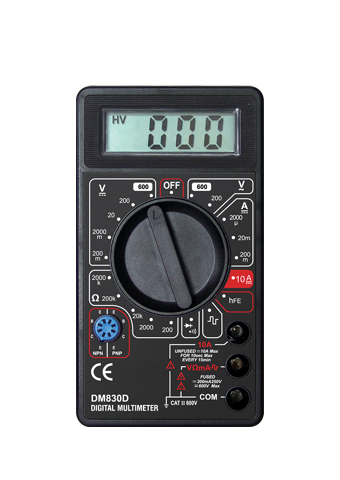

DM830D

Features

[2007 catalog B] [Page 27]

·3 1/2 digits LCD, Max. reading 1999
·Low battery indication
·Overload protection

CAT II

CE

Specifications

Voltage DC:200m/2000m/20/200/600V
Voltage AC:200/600V
Current DC:2000μ/20m/200m/10A
Resistance:200/2000/20k/200k/2000kΩ
Square Wave:50Hz
Diode Check:3V/0.8mA
hFE:Vce≈3V, Ib≈10μA

Power:9V battery (6F22)
Dimensions(W×L×T):70×126×28 mm
Weight:155g (with battery)

Accessories

Test Lead; Battery; Users Manual; Holster (optional)
