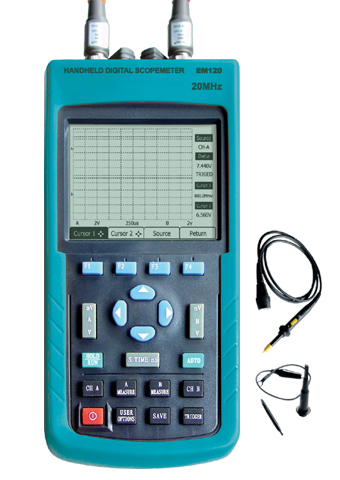

Screen Display 60mm×80mm Screen 240 Dot×320 Dots
Backlight Adjustable Save 6 Groups Of Waveforms And 10 Groups of parameters
Dual Channel, Bandwidth 20 MHz
The auto set function, continuous fully automatic adjustment of amplitude range and time base.
Waveforms and waveform parameters can be displayed on the screen at the same time. The user can choose parameters (such as RMS, peak to peak, means, frequency, period and so on) according to the needs.
With 100Msa/s real time sampling rate each channel and 20MHz bandwidth. It can reflect the waveform state quickly and factually, catch the fault impulse with the least breadth of 10ns.
Saving and recalling function. It can save six groups of waveform data and ten groups of parameter setups.
High distinguishable crystal display. It can display the details of the waveform distinctly.
With compact, convenient, full functional operating menu.
It can be portable with lighter, smaller, only 0.7kg weight.
Supplied with Ni-battery. It can be used under all kinds of environments constantly.
---------------------------------------------
CAT II / CE
Bandwidth 20 MHz
Voltage measure:Peak-peak, Means, RMS
Frequency meter:Frequency/Period
Resistance:200/2K/20K/200K/2M/2M?
Diode:≤2V
ON/OFF Test:Lower 50?, Beep
AC Adapter:DC58V/8W
PC Interface:RS232
Software:PC Software
Power:3.6V Lithium battery
Dimensions(W×L×T):114×222×50 mm
Weight:700g (with battery)
---------------------------------------------
·Bandwidth:20Mhz(Real Time Bandwidth)
·Channel Number:2
·Raise Time:17.5ns
·Sampling Rate:100Msa/s
·Horizontal Sensitivity：10ns/div---5s/div,With 1-2-5 Steps
·Horizontal Precision:0.01%+1Pixel
·Horizontal Distinguishability:10ns
·Vertical Sensitivity:5mV/div---20V/div,with 1-2-5 steps
·Vertical Precision:±(5%+1 pixel)
·Vertical Distinguishability:8Bit
·Maximum Input Voltage:300Vp-p(BNC)
·Trigger Mode:Normal,Auto,Single
·Cursor Measure:Horizon,Verticality
·Screen Display：80mm×60mm Screen;320Dots×240Dots Backlight Adjustable·Display Mode:Dots Display,Vectors Display
·Save:6 Groups of Waveforms And 10 Groups of parameters
·Input Impedence:1MΩ、≤20pF
·Channel Isolation:>100:1
·Power:3.6V Lithium battery
·Dimensions(W×L×T):114×222×50 mm
·Weight:700g (with battery)
Li Battery(installed);AC/DC power Adapter;Scopemeter Probes;Multimeter Test leads;Holster
--------------------------------------------
·Li Battery(installed) 1PC
·AC/DC power Adapter 1PC
·Scopemeter Probes 2Pcs
·Multimeter Test leads (red and black) 1 Pair
·Users Manual 1PC
