EM5800 Series DMM

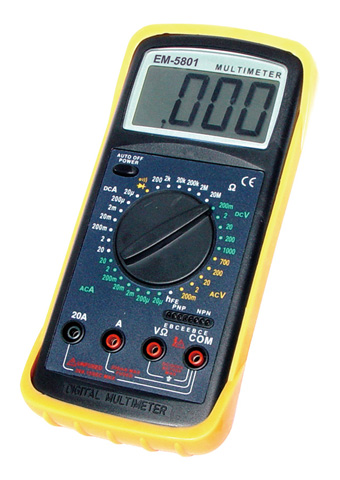

EM5801

Features

[2007 catalog B] [Page 15]

·3 1/2 digits LCD with a Max.reading of 1999
·Low Battery indication
·Overload protection
·Audible continuity
·Auto power-off

CAT II

Specifications

Voltage DC:200m/2/20/200/1000V
Voltage AC:200m/2/20/200/750V
Current DC:20μ/200μ/2m/20m/200m/2/20A
Current AC:20μ/200μ/2m/20m/200m/2/20A
Resistance:200/2k/20k/200k/2M/20MΩ
Diode Check:2.8V/1mA
hFE:Vce≈3V, Ib≈10μA

Power:9V battery (6F22)
Dimensions(W×L×T):93×200×50 mm
Weight:400g (with battery)

Accessories

Test Lead; Battery; Users Manual; Holster

User Manual

• EM5801 Manual(RAR) Download: EM5800_en.rar

  RAR (File format for data compression and archiving)

• EM5801 Manual(PDF) Online Read: EM5800_en.pdf

  Portable Document Format (PDF)
